Large Capacity 6000pcs/h Paper Pulp Molding Machine Egg Tray Machine Production Line
Four sections of the production line:
1. Pulping system:including the hydrapulper, water pump, pulp pump, mixer,etc..to make the wastepaper into paper pulp.

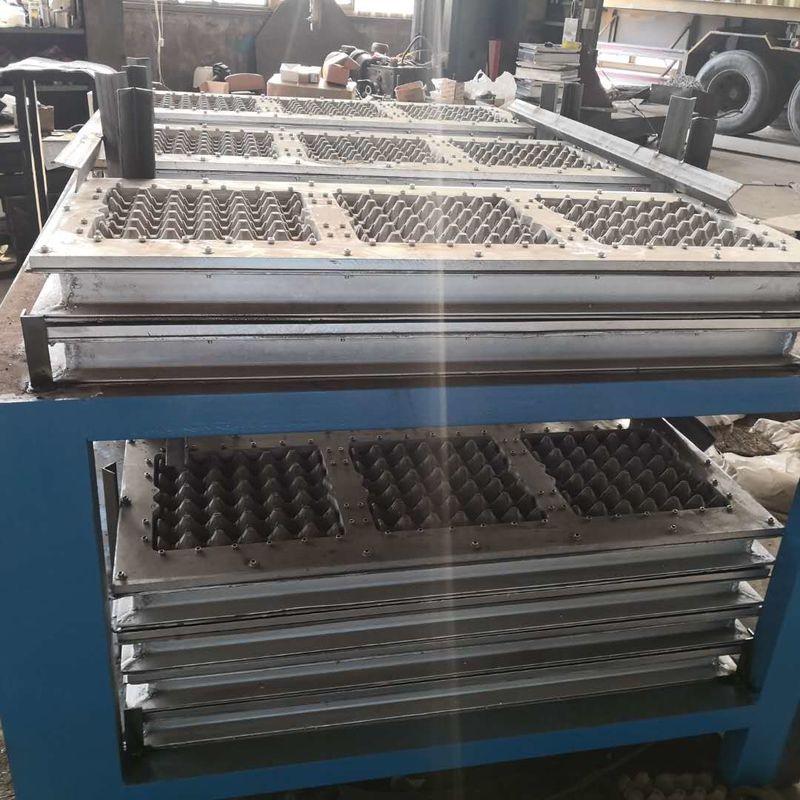

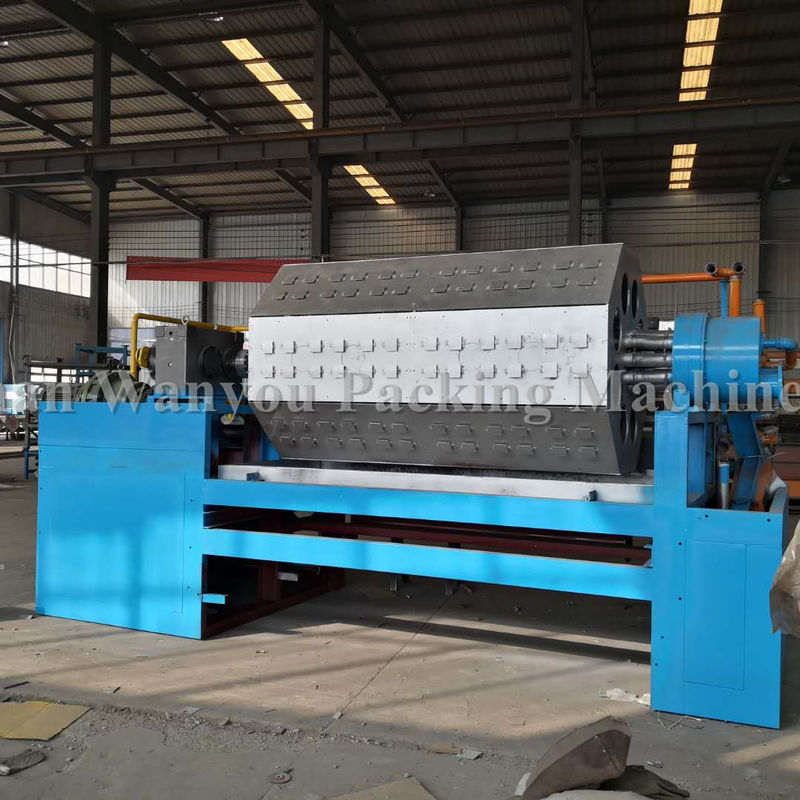

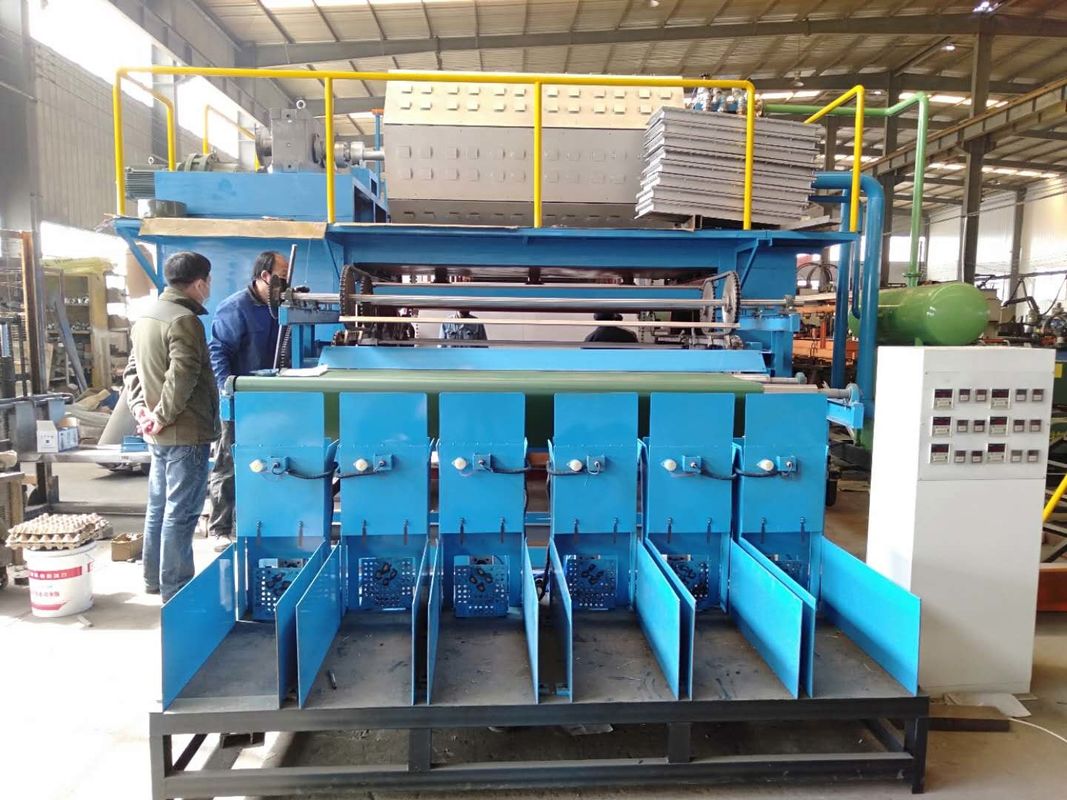

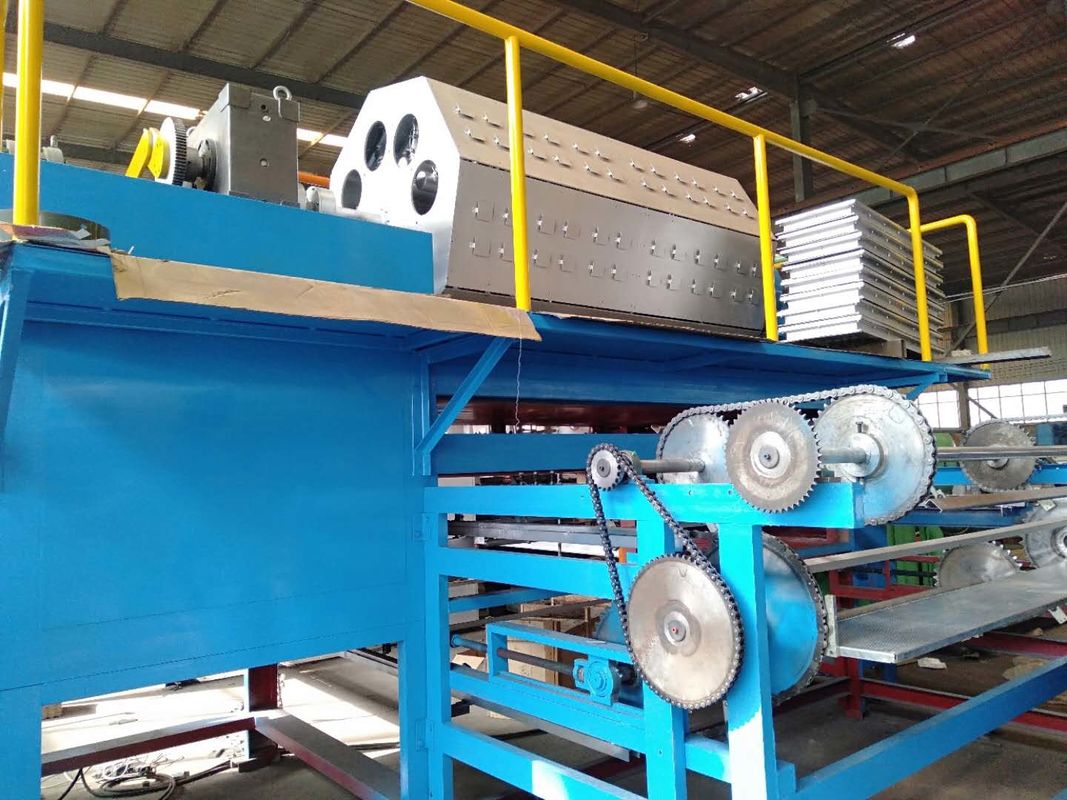

2. Forming system: including the molding machine,molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3. Drying system: including the oven,chains,trays,heating pipes,fans,boiler,etc..to dry the wet trays so they can be used directly.
4layers metalic dryer for egg tray machine
4.Automatic Stacker:
After drying line, the egg trays go to the automatic counting and stacking system, you can preset the quantity of one pile, such as 100pcs or 200pcs. When the quantity okay, it will be alarm. The products stacked at the same time. You can packaged them directly.
Technical data of the egg tray machine/ egg tray production line
|
Egg Tray Mold Quantity
|
48pcs(6pcs*8 faces)
|
|
Raw material
|
Waste paper
|
|
Egg tray Capacity
|
6000pcs/hour
|
|
Net weight per piece (gram)
|
70g-75g
|
|
Waste paper consumption
|
450kg / hour
|
|
Water Consumption
|
1.35ton / hour
|
|
Natural Gas/Diesel oils Consumption of Dryer
|
180m3/h/140kg/h around
|
|
Worker requirement
|
8-10workers
|
|
Machine Length
|
65m
|
|
Machine weight
|
50tons
|
|
Electric Power
|
140kw
|
|
Installed power
|
200KW
|
|
Area of workshop
|
750m2(10mWidth*75mlength)
|
|
Container Requirement
|
40ft*7
|
|
Remarks: 1. The egg tray Capacity calculated base on 30-packed egg tray(size 300x300mm, weight 70g~75g).
2. Workshop size is for reference only and could be adjusted according to actual size of client’s plant.
|
Payment and delivery
|
Trade terms
|
FOB Qingdao or EXW Factory
|
|
Delivery time
|
About 100 working days after receiving the deposit.
|
|
Payment term
|
BY T/T40%DEPOSIT+60%BALANCE
|
|
Time of payment
|
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
|
|
Warranty time
|
1 year after the Egg tray machine received.
|
|
TERMS OF DELIVERY
|
EXW Jinan,China
|
|
Package
|
7*40ft In container
|
Some world famous brands of the Egg Tray Machine Egg Tray Production Line fittings:
1. the cylinder’s brand—FESTO
2. the electromagnetic valve’s brand—SHAKO
3. the pneumatic ball valve’s brand—SUPU
4. all the pump and motor are using famous brand of China.
5. the electric appliance’s brand—CHINT
6. the computer controller(PLC)--DELTA
7. the burner-- BALTUR/RIELLO
Advantages of our paper egg tray machine/egg tray production line:
1). Controlled by automatic computer soft ware
2). No need for infrastructure construction, machine can start running only after connecting some pipes, power and water, and preparing the material
3). Some parts are Germany brand or other famous brand
4). Our egg tray machine can make different trays at same time by using different moulds
5). Besides egg tray, fruit trays, our machine also can produce industrial package
6). All installation and debugging work will be done before shipment.
7). 20 years' experience on egg tray machine

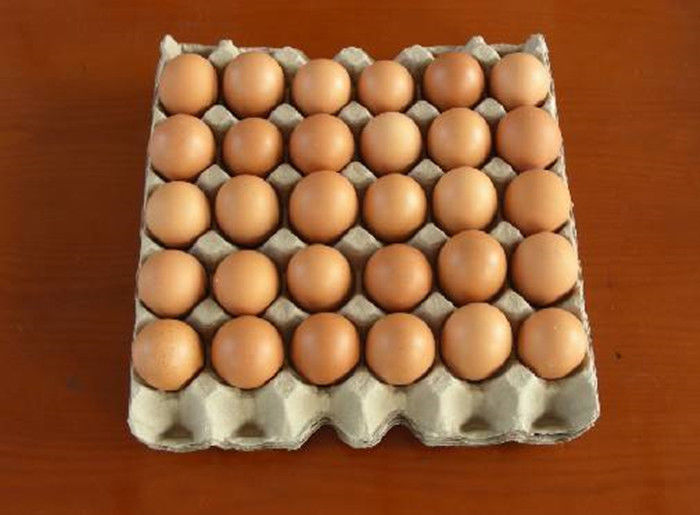

End product made by egg tray machine:
Our company can customize paper egg tray machine as per specified request by different buyer.
Welcome to contact us for detail of the egg tray machine.
