Name: 5*8Molds 5000pcs/h Paper Egg Tray Production Line Machine With Complete Pulping Forming Drying And Automatic Stacking Systems For Paper Egg Tray Egg Carton Shoe Tray Seedling Tray Making
Brand: Jinan Wanyou Packing Machinery Factory
SKU: WY-1
Price: 52,500.00 USD
Availability: InStock

Thuis > producten > De Productielijn van het eidienblad >

5*8Molds 5000pcs/h Paper Egg Tray Production Line Machine With Complete Pulping Forming Drying And Automatic Stacking Systems For Paper Egg Tray Egg Carton Shoe Tray Seedling Tray Making

5*8 molds paper egg tray machine

automatic egg carton production line

pulp molding drying stacking system

Plaats van herkomst:

Jinan, Shandong, China

Merknaam:

Wanyou

Modelnummer:

WY-1

Neem contact met ons op

Vraag een offerte

Productgegevens

Spanning:

380V/50Hz

Garantie:

1 jaar

Grondstoffeninput:

elk soort oud papier, kranten, boeken, karton, enz.

Automatiseringsniveau:

Halfautomatische / volautomatische opties beschikbaar

Reserveonderdelen:

één jaar vervangen

Stroomverbruik:

260 KW per uur feitelijk verbruik

Verzameling:

Automatische stapelmachine

Waterverbruik:

2250 kg/uur

Kader:

45# staal

Brandstoftype:

Aardgas, dieselolie, steenkool

Markeren:

5*8 molds paper egg tray machine

automatic egg carton production line

pulp molding drying stacking system

Betaling en verzendvoorwaarden

Min. bestelaantal

1 Instellen

Prijs

onderhandelbaar

Verpakking Details

in container

Levertijd

100 werkdagen

Betalingscondities

Western Union, MoneyGram, T/T

Levering vermogen

1 reeks per Maand

VERWANTE PRODUCTEN

Video

40-65kw 1000-1500 stuks per uur Eiertraymachine Eiertrayproductielijn voor het maken van eiertrays Eierdozen Schoenentrays Kwekerijtrays Aluminium mallen PLC-gestuurd

Vind de beste prijs

Video

Volledig geautomatiseerde productielijn voor eierenbakken met intelligent bedieningspaneel en droogsysteem voor verhoogde productiviteit

Vind de beste prijs

Video

Volledig geautomatiseerde eierenbakvormmachine ontworpen voor stabiele prestaties en consistente output in de eierenverpakking

Vind de beste prijs

Video

5000 stuks/uur Rotary Egg Tray Production Line Incorporating Automatic Stacking and Drying Technology for Streamlined Manufacturing PLC controlled

Vind de beste prijs

Neem contact met ons op

+8615665703348

jnrunliang@hotmail.com

Contact nu

Productbeschrijving

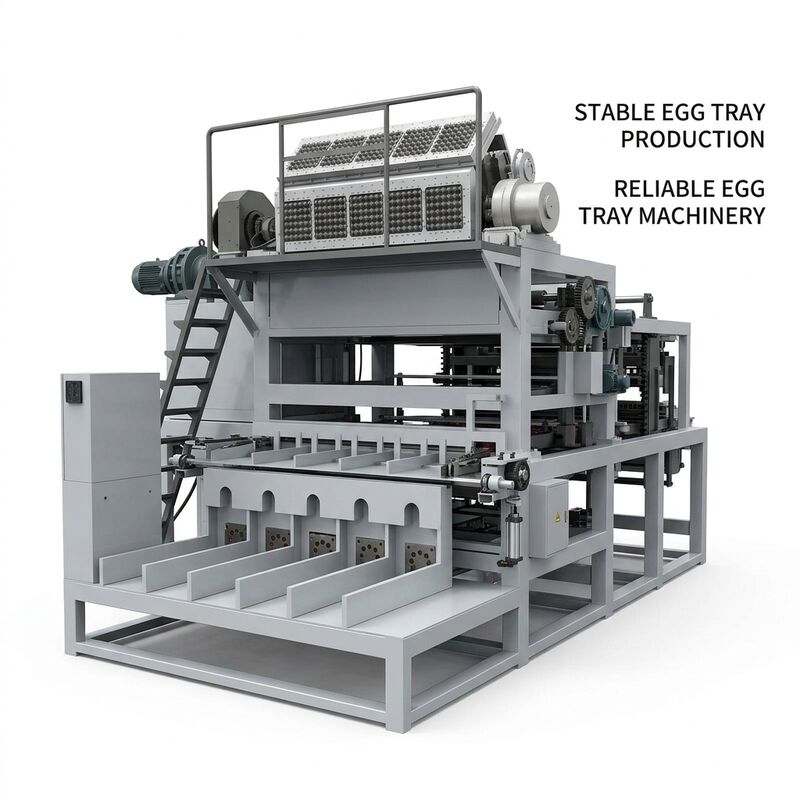

5*8Molds 5000pcs/h Paper Egg Tray Production Line Machine With Complete Pulping Forming Drying And Automatic Stacking Systems For Paper Egg Tray Egg Carton Shoe Tray Seedling Tray Making

The main sections of the production line:

1.Pulping system:

Including the hydrapulper,pump,disk mill (refiner),mixer,etc..to make the wastepaper into pulp.

5*8Molds 5000pcs/h Paper Egg Tray Production Line Machine With Complete Pulping Forming Drying And Automatic Stacking Systems For Paper Egg Tray Egg Carton Shoe Tray Seedling Tray Making 0

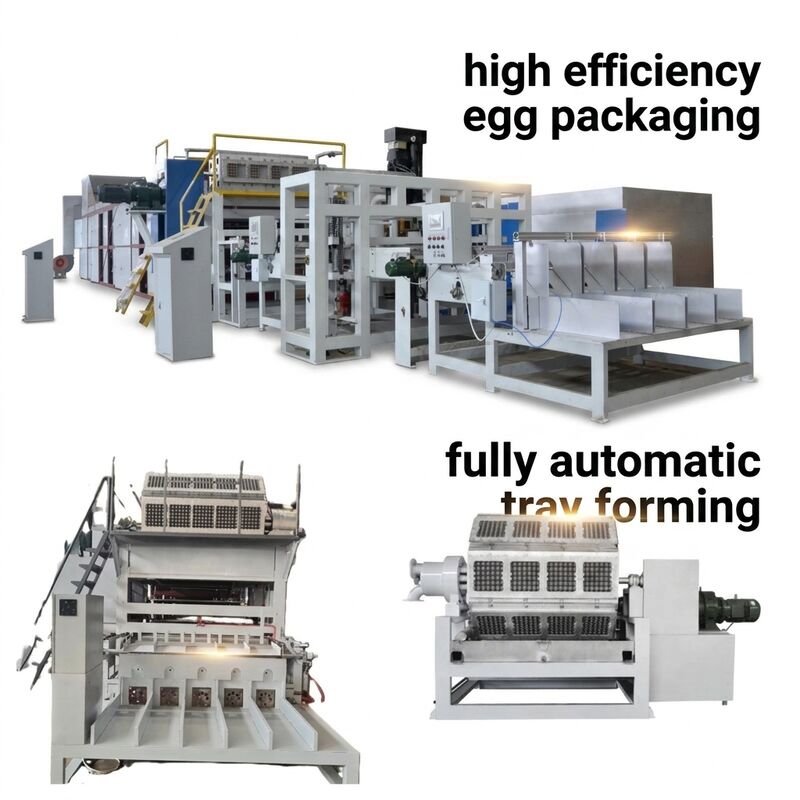

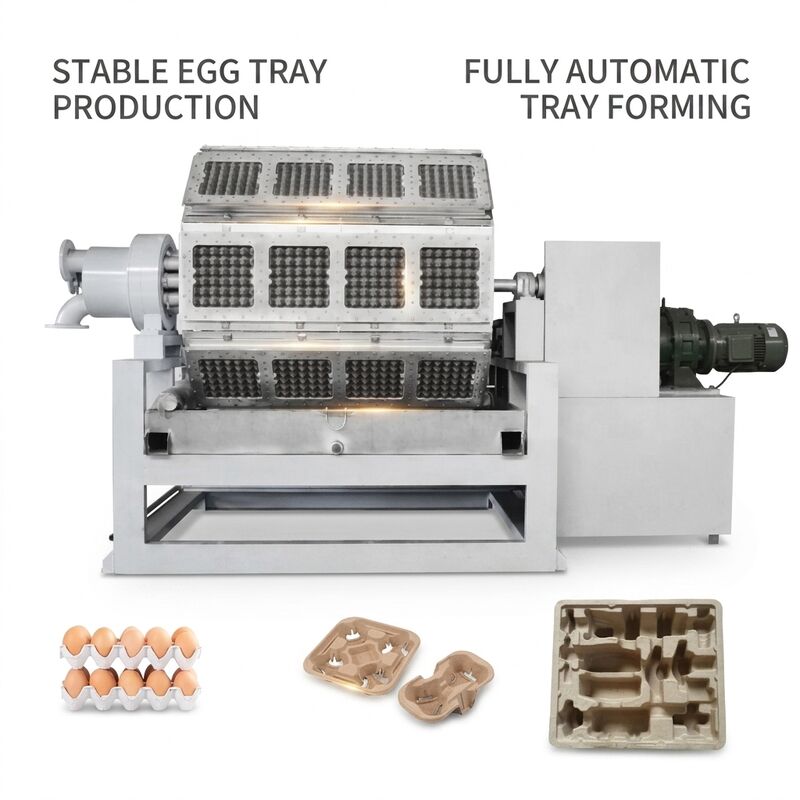

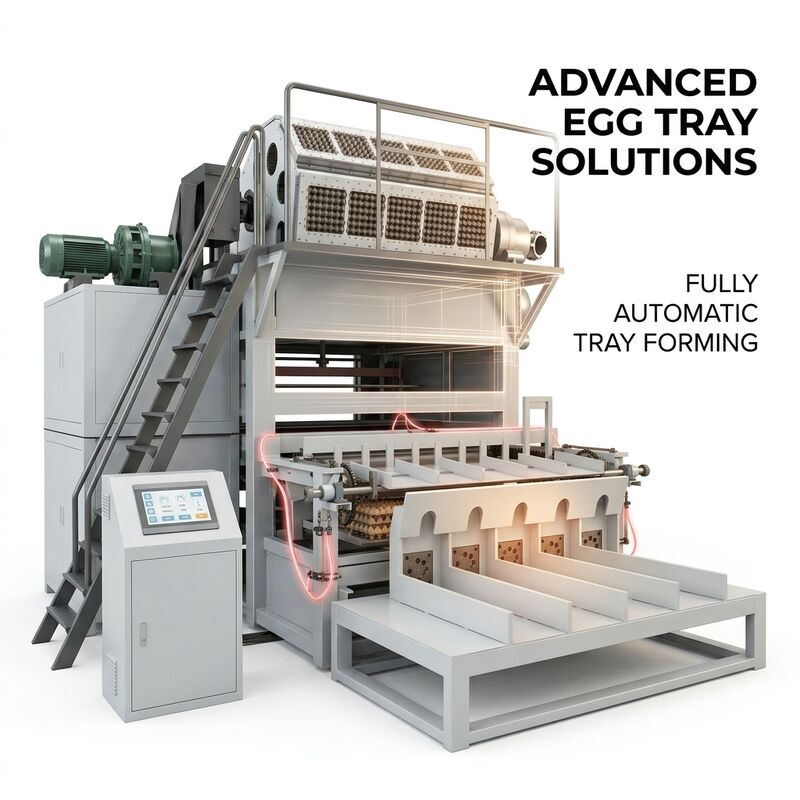

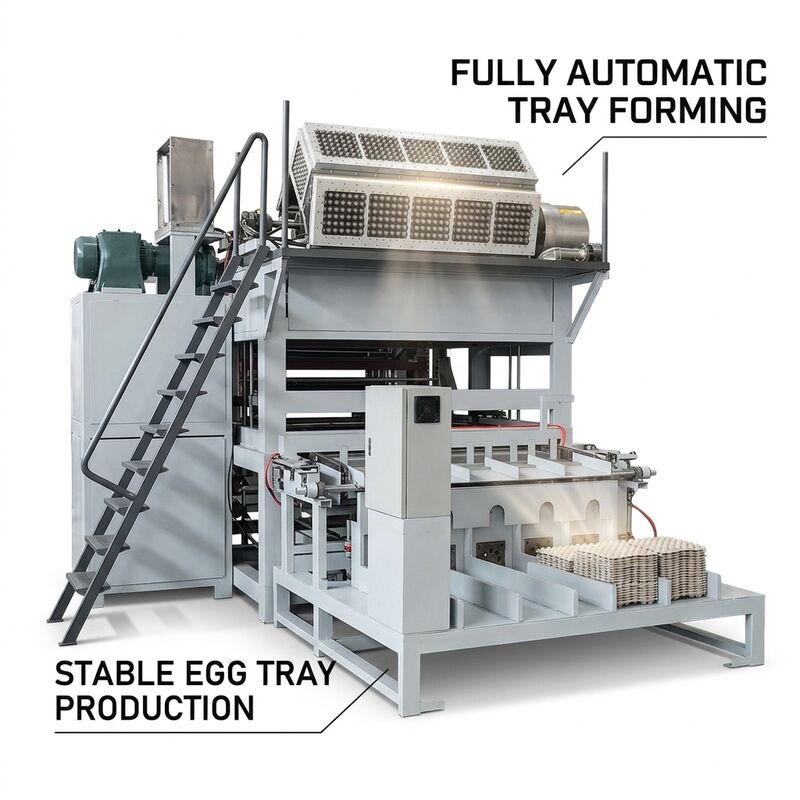

2. Forming system:

Including the molding machine,molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.

5*8Molds 5000pcs/h Paper Egg Tray Production Line Machine With Complete Pulping Forming Drying And Automatic Stacking Systems For Paper Egg Tray Egg Carton Shoe Tray Seedling Tray Making 1

5*8Molds 5000pcs/h Paper Egg Tray Production Line Machine With Complete Pulping Forming Drying And Automatic Stacking Systems For Paper Egg Tray Egg Carton Shoe Tray Seedling Tray Making 2

5*8Molds 5000pcs/h Paper Egg Tray Production Line Machine With Complete Pulping Forming Drying And Automatic Stacking Systems For Paper Egg Tray Egg Carton Shoe Tray Seedling Tray Making 3

5*8Molds 5000pcs/h Paper Egg Tray Production Line Machine With Complete Pulping Forming Drying And Automatic Stacking Systems For Paper Egg Tray Egg Carton Shoe Tray Seedling Tray Making 4

3.Drying system:

Including the oven,chains,trays,heating pipes,fans,boiler,etc..to dry the wet trays so they can be used directly.

5*8Molds 5000pcs/h Paper Egg Tray Production Line Machine With Complete Pulping Forming Drying And Automatic Stacking Systems For Paper Egg Tray Egg Carton Shoe Tray Seedling Tray Making 5

5*8Molds 5000pcs/h Paper Egg Tray Production Line Machine With Complete Pulping Forming Drying And Automatic Stacking Systems For Paper Egg Tray Egg Carton Shoe Tray Seedling Tray Making 6

4.Automatic Stacker:

After drying line, the egg trays go to the automatic counting and stacking system, you can preset the quantity of one pile, such as 100pcs or 200pcs. When the quantity okay, it will be alarm. The products stacked at the same time. You can packaged them directly.

5*8Molds 5000pcs/h Paper Egg Tray Production Line Machine With Complete Pulping Forming Drying And Automatic Stacking Systems For Paper Egg Tray Egg Carton Shoe Tray Seedling Tray Making 7

Technical Parameters:

Egg Tray mould quantity	48pcs (6*8)	Container Required
Raw material	Waste paper	About 40HQ*6
Output for egg tray	6000pcs/hour
Net weight per piece (30holes egg tray/gram)	70g-75g
Waste paper consumption	450kg/h
Water consumption	1350kg/h
Diesel consumption Natural gas consumption	115kg/h 120cbm/h
Workshop area	At least 50mL10mW4mH
Installed Power	221kw Actual usage is 70% of 221KW.
Machine Weight	48 tons around
Egg tray Size	295mm*295mm 30eggs
Installation & Training 1.Usually, all installation and debugging work will be done before shipment. 2. We will offer online support after sales services for problems during installation and testing. 3. If buyer needs seller to send engineers for installation, debugging and training, buyer shall undertake engineer salary 100$/day, and also needs to bear the cost of the engineer's accommodation and round-trip airfare.

Payment and delivery:

Trade terms	EXW Jinan
Delivery time	About 100 working days after receiving the deposit.
Payment term	BY T/T40%DEPOSIT+60%BALANCE
Time of payment	When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery.
Warranty time	1 years after the Egg tray machine received.
TERMS OF DELIVERY	EXW Jinan,China
Package	7*40ft In container

Welcome for more information.

Whatsapp&Wechat:+86 15665703348
